Description

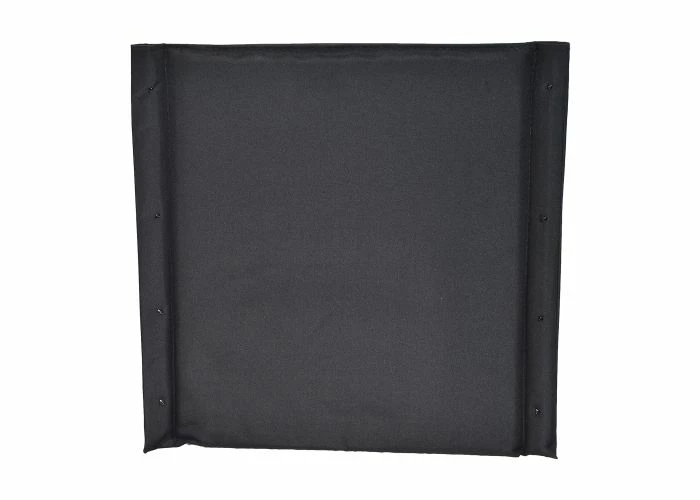

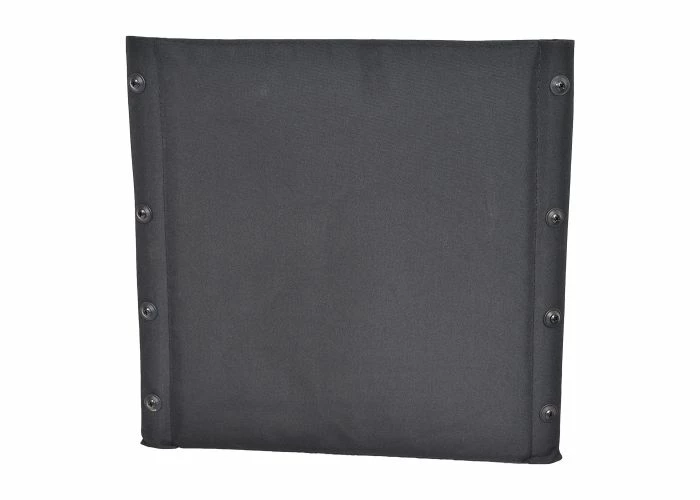

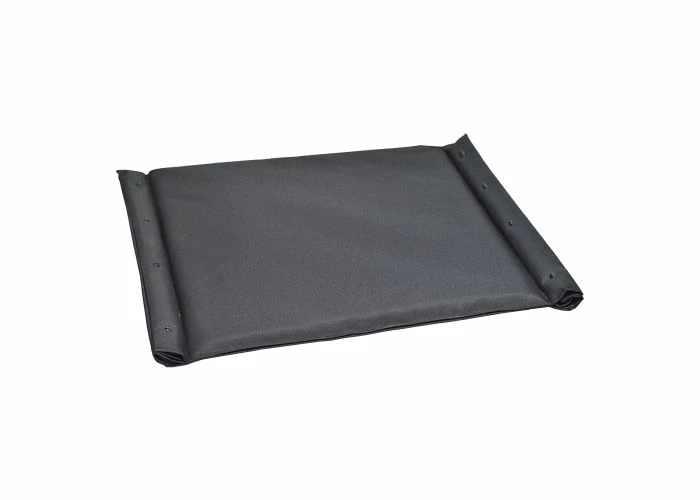

These wheelchair seat backs may be compatible with a wide multiplicity of wheelchair brands and models.
Note: The nominal dimensions given are the industrial standards. Please refer to the Specifications list for the linear inch measurements as well as the screw fastener spacing.
β WARNING California Residents: Proposition 65 Warning
Specifications
True linear width: 15-3/4″
Screw spacing (horizontal): 14-1/2″
True linear height: 15-1/2″
Screw spacing (vertical from top): 1-3/4″, 6-7/8″, 10-1/4″, 14-7/8″
Nominal size 16″W x 18″H
True linear width: 15-1/2″
Screw spacing (horizontal): 14-1/2″
True linear height: 17-3/4″
Screw spacing (vertical from top): 2″, 5-1/2″, 9-1/4″, 14″
Nominal size 18″W x 16″H
True linear width: 17-3/4″
Screw spacing (horizontal): 17″
True linear height: 15-1/2″
Screw spacing (vertical from top): 1″, 6-3/8″, 11-1/4″, 16″
Nominal size 18″W x 18″H
True linear width: 17-3/4″
Screw spacing (horizontal): 16-3/4″
True linear height: 17-3/4″
Screw spacing (vertical from top): 1″, 6-7/8″, 11-3/8″, 16″
